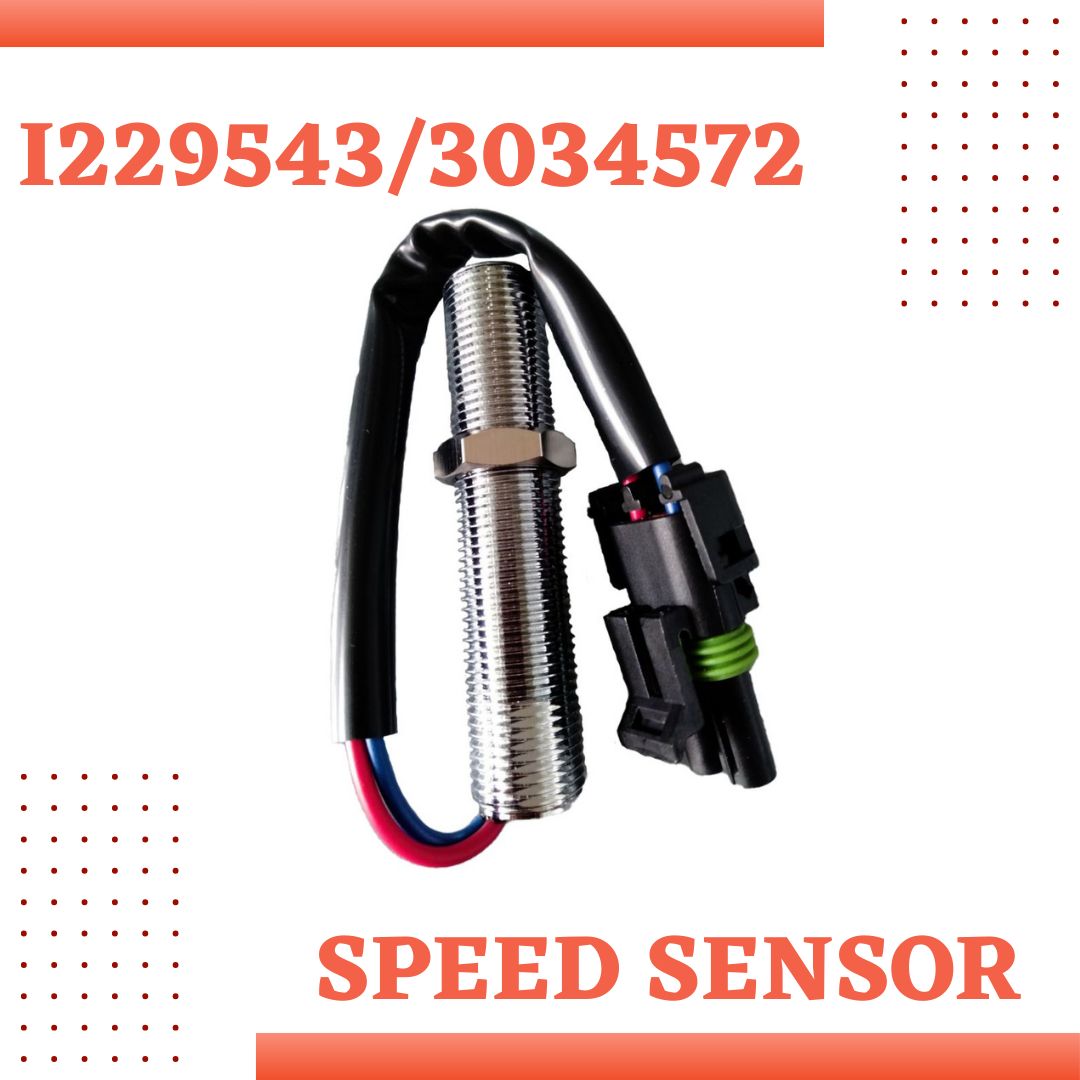

Speed Sensor MPU I229543/3034572

MPU Speed Sensor Compatible with Cummins K38 G38 QSK38 KTA38GC K106 Engine

Product Specifications:

Measure range: 50-5000Hz

Inductance: 142MH+25%

Thread Size: 5/8-18 UNF-2A

Tap Drill Size: 37/64 inch

Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)

Temperature Range: -55° to 105°

Output at Cranking Speed: 1.5 volts AC minimum

Maximum Output: 30 volts AC

Coil Resistance: 300 ohms maximum
