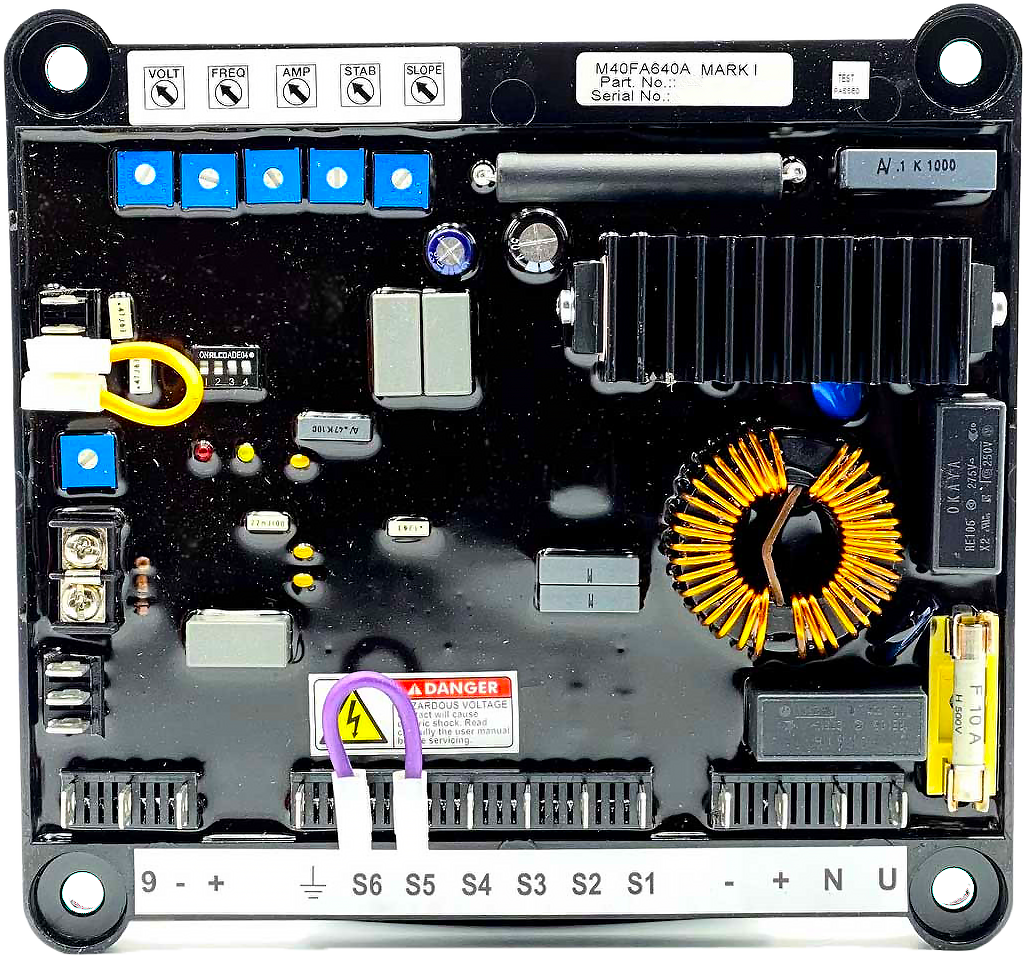

MARELLI AVR M40FA640A
Php18 000.00
Sold out
Sold out
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MARELLI AVR M40FA640A
Product Details
Brand: MARELLI
Specifications of M40FA640A Marelli Voltage Regulator
REGULATION ACCURACY: ±0.5% steady state conditions, for rated Voltage and PF
VOLTAGE DRIFT: ±0.5% of voltage change for 50°C T amp change
RESPONSE TIME: 1 cycle (20ms-16.6ms)
OPERATING TEMPERATURE: -30°C ÷ +70°C
EXCITER FIELD RESISTANCE: 3.5Ω (min) ÷ 20Ω (max)
INPUT/OUTPUT DATA of M40FA640A Marelli Generator AVR:
PROVIDE VOLTAGE: 170 - 277V (50/60Hz)
POWER PROVIDE: 1000 VA (max)
POWER DISSIPATED: 30 W (max)
VOLTAGE SENSING: 170 - 270 / 380 - 415 / 440 - 480 V (Three or Single Phase Sensing)
OUTPUT VOLTAGE (DC): 80V (max, continuous)
OUTPUT CURRENT (DC): 8A (max, continuous)
OUTPUT CURRENT (DC): 15 A (max 1 minute forcing)
