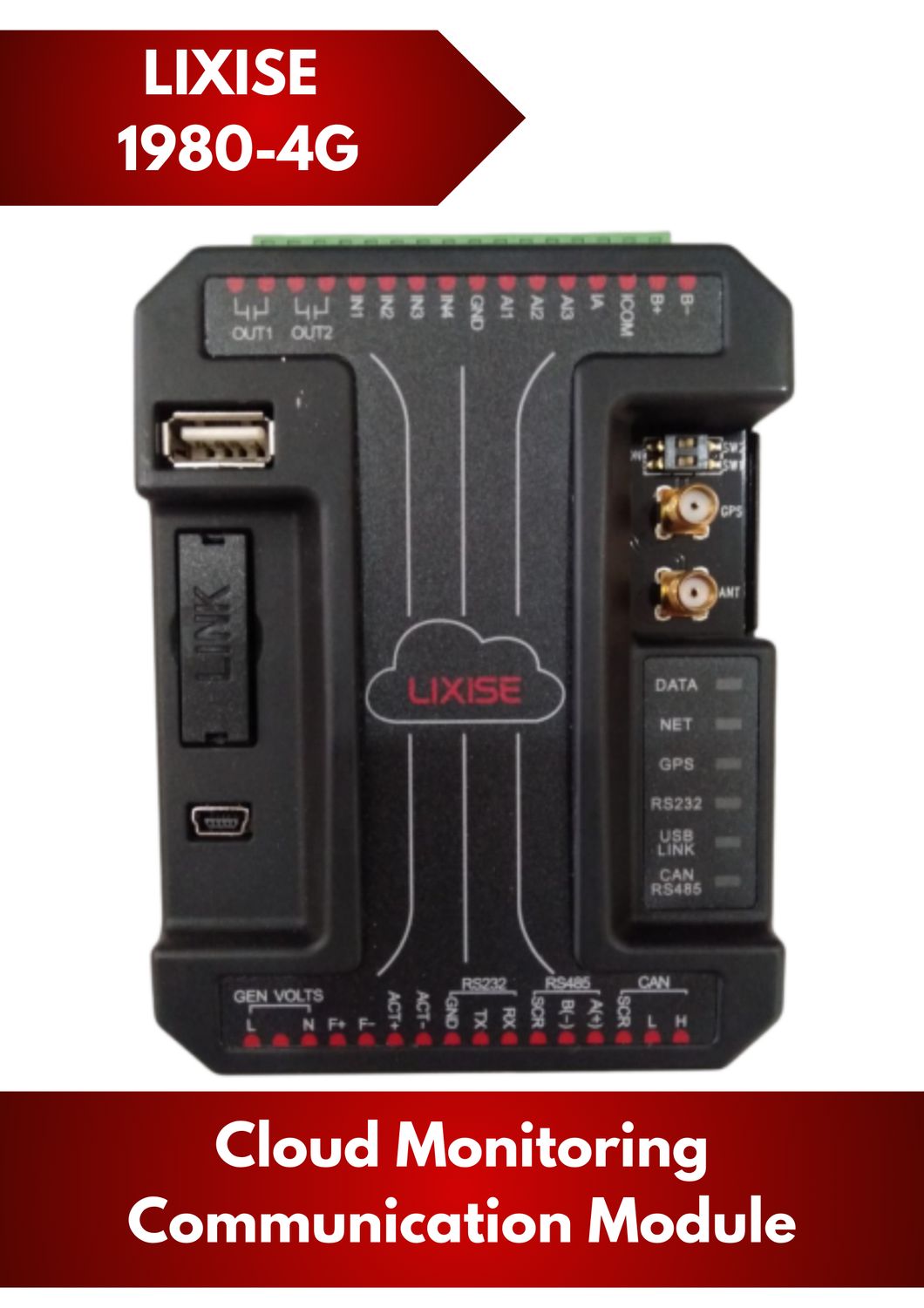

LIXISE 1980-4G
Product Details
Brand: LIXISE
Part Number: 1980-4G
Cloud Monitoring Communication Module
| Length: | 11cm |
| Width: | 8.5cm |
Product Features:
- Each frame can be set to 1024B length (CACHE 4 frames), suitable for continuous transmission of large amounts of data;
- Use industrial-grade GPRS/CDMA module, embedded protocol stack;
- Supply voltage range: 6V to 36V
- With device power off function, easy to control.
- Data transparent transmission, the user does not need to understand the complex TCP/IP, PPP and other protocols
- Support data center dynamic domain name or IP address access
- Support APN virtual private network service
- Support break automatically reconnect function
- Have humanized connection occasion-controlled function, more save data flow rate.
- Support local and remote graphical interface configure and maintain
- Supports GPS positioning data reporting and query functions, data import Baidu map to achieve satellite map precise positioning
- Reliable design of multiple hardware and software, combined the watchdog technology, make the safe running of the equipment
Performance Parameters:
|
Name |
Parameter |
Remark |
|
Network type |
GPRS mobile station type /GPRS Multi slot type CDMA2000 1X /Ethernet |
|
|
Frequency band |
GSM850/900/1800/1900MHz CDMA 800MHz |
|
|
GPRS network CDMA network |
Downlink： |
GPRS Max：85.6Kbps CDMA Max：153.6Kbps |
|
GPRS/CDMA network transmission rate |
Uplink： |
GPRS Max：42.8Kbps CDMA Max：153.6Kbps |
|
SIM card voltage |
2.85V/1.8V |
|
|
Antenna Interface |
50Ω/SMA |
|
|
Serial interface Level type |
RS-232 Standard Level /RS485/LINK/CAN |
|
|
Serial port baud rate |
300～115200bps |
Supports standard baud rate |
|
Power supply |
DC：+6V～36V |
|
|
Power dissipation |
Working: Max 800mA-104dBm |
communication module work current |
|
Standby：≤30 mA |
||
|
Humidity range |
0～95% |
Non-condensing |
Indicator Status:
|
LED Lamp |
Color |
State |
Description |
|
Power / Data state |
Red |
Light |
Working status |
|
Flash |
Data is being transmitted / Standby |
||
|
Working |
Green |
Light |
Already connected to wireless network |
|
Light off |
Not connected to wireless network |
||
|
Fast flash |
Connecting to data center |
||
|
Slow flash |
Dialing |
||
|
GPS |
Red |
Light |
Has positioned the latitude and longitude |
|
Fast flash |
To find the satellite signal, but not locate of the latitude and longitude |
||
|
Slow flash |
The satellite signal was not found |
||
|
RS232 |
Green |
Light off |
Not connected to the RS232 data serial port |
|
Light |
Connected to the RS232 data serial port |
||
|
LINK/USB |
Green |
Light off |
Not connected to the LINK/USB data serial port |
|
Light |
Connected to the LINK/USB data serial port |
||
|
CAN/RS485 |
Green |
Light off |
Not connected to the CAN/RS485 data serial port |
|
Light |
Connected to the CAN/RS485 data serial port |
Terminal Blocks Description:
|
Terminal |
Description |
|
B-/B+ |
Power supply. DC 8.0V to 35.0V continuous power supply |
|
ICOM/IA |
Generated current input. Maximum input current is 5A |
|
AI1/2/3 |
Sensor input |
|
IN1/2/3/4 |
Digital input （Grounding effective） |
|
OUT1/2 |
Relay output, relay withstand current is 1A |
|
GEN VOLTS (L N) |
Generated voltage input. 15V AC-360V AC(ph-N) |
|
F+/F- |
Excitation voltage input, 10V DC-70V DC(ph-N) |
|
ACT+/ACT- |
Governor actuator input, 7V DC-30V DC(ph-N) |
|
RS232(TX RX) |
RS232 port, connect to controller(DSE/ComAp/LIXiSE etc) |
|
RS485(B- A+) |
RS485 port, connect to controller(DSE/ComAp/LIXiSE etc) |
|
CAN(H L) |
CAN port, connect to ECU |
|
Small USB port |
Connect computer to do configuration settings |
|
Big USB port |
Connect to controller (DSE etc) |
|
LINK port |
connect to controller (Smartgen/Harsen etc) |
