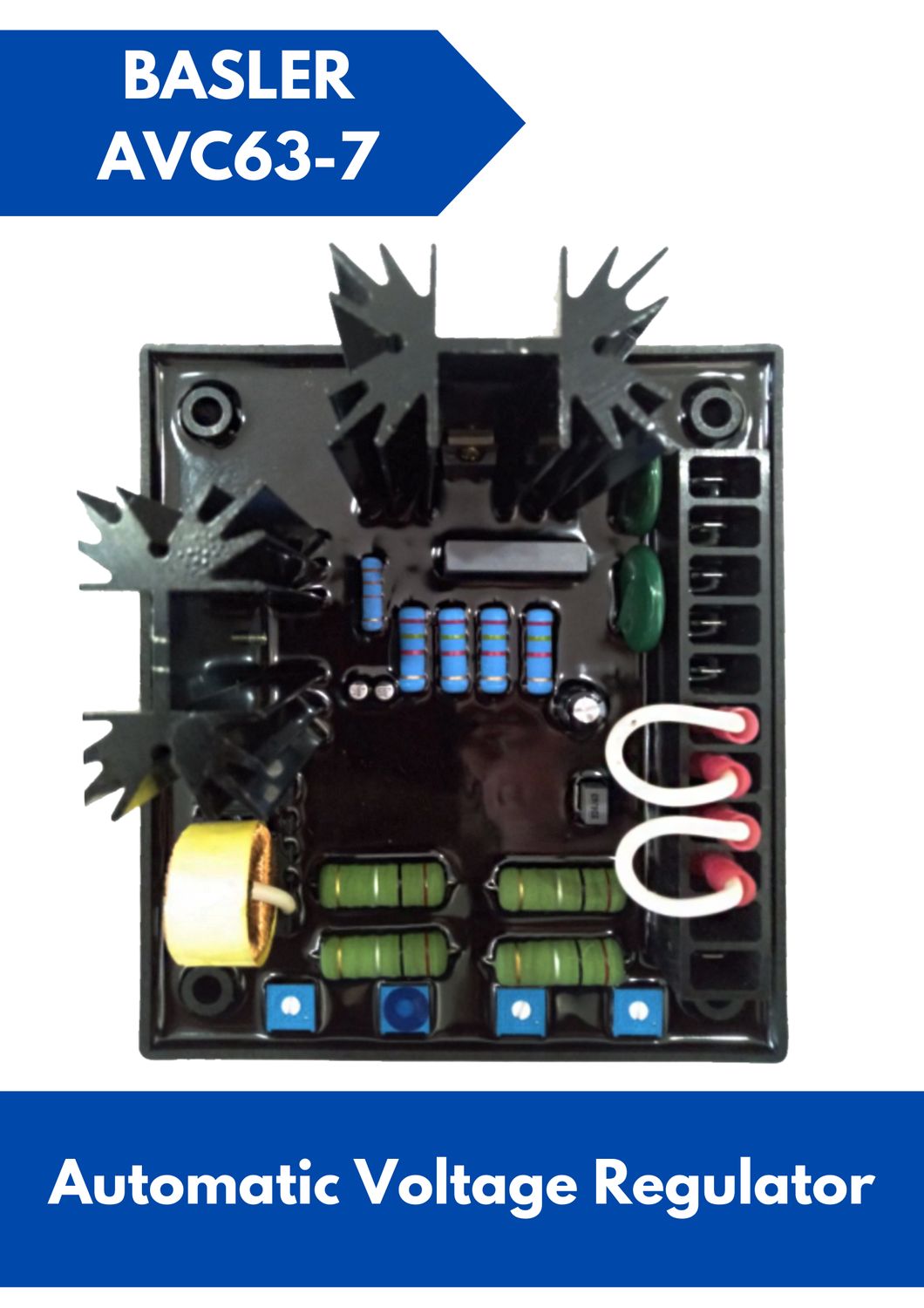

BASLER AVR AVC63-7

PHYSICAL SPECIFICATIONS of Basler Voltage Regulator AVC63-7

Temperature Operating: –40 to 60°C (–40 to 140°F)

Storage: –65 to 85°C (–85 to 185°F)

Vibration

Withstands 1.2 G at 5 to 26 Hz; 0.036" double amplitude at 27 to 53 Hz; 5 G at 53 to 1,000 Hz.

Shock

Withstands up to 15 G in each of three mutually perpendicular axes.

Weight 17 oz (482 g) net.

ELECTRICAL SPECIFICATIONS of AVC63-7 Basler AVR

DC Output Power:

7 Adc at 63 Vdc maximum continuous with a 240 Vac input.

Exciter Field DC Resistance:

9.0 ohms minimum.

AC Power Input:

170 to 305 Vac, single-phase, 50/60 Hz.

Burden: 900 VA maximum at 240 Vac power.

AC Sensing Voltage:

170 to 264 Vac, single-phase, 50/60 Hz.

Burden: 5 VA.

Voltage Adjust Range:

170 to 264 Vac using the internal voltage adjust. The external voltage adjust provides a ±10% adjustment of the nominal value determined by the internal voltage adjust.

Regulation Accuracy ±0.25% Voltage Drift
