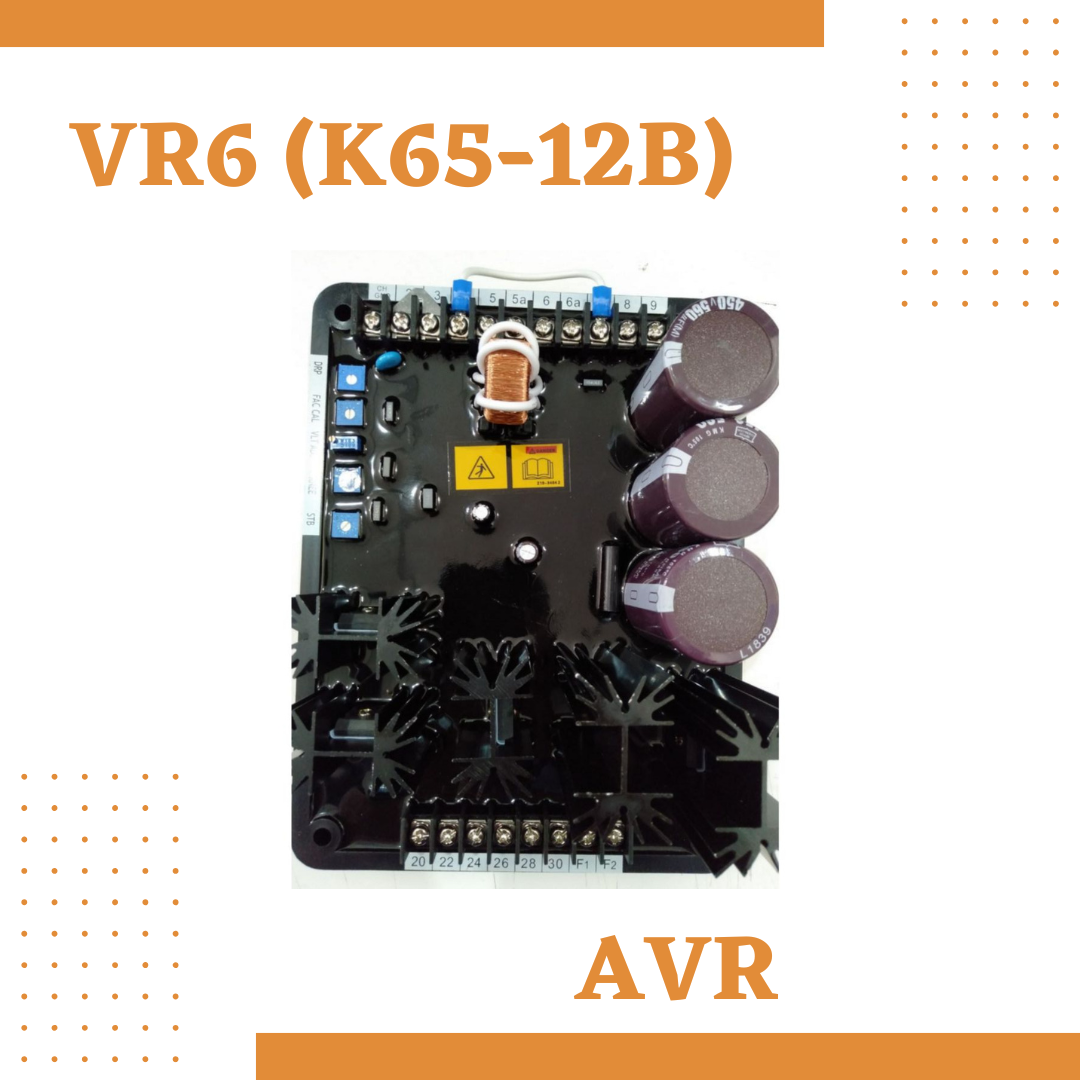

AVR VR6 (K65-12B)

Product Specifications:

Output power (with a 240Vac Input):

12 Adc @ 65 Vdc maximum continuous.

25 Adc @ 125 Vdc forcing for 10 seconds.

AC input power:100 to 280 Vac, single-phase 50 to 400 Hz, or 63 to 105 Vac; three phase,50 to 400 Hz, 1092 VA maximum continuous burden

External voltage adjust rheostat:10k ohm, 2 W, potentiometer

Regulation accuracy: ±0.5% Average responding

Voltage drift:±1% voltage variation for a 40° C (104° F) change

Response time:<4 milliseconds

Frequency compensation: 1 or 2 V/Hz jumper selectable with knee adjustable from 45 Hz to 65 Hz.

EMI suppression: Internal filter
